Shuttle Conveyor

Shuttle conveyor systems are advanced material handling solutions designed to transport products quickly and precisely between different points in production and storage lines. Operating on a horizontal axis, these systems provide high efficiency, especially in lines with multiple discharge or feeding points. Shuttle conveyors optimize product flow, reduce labor requirements, minimize time losses, and contribute to more organized and streamlined operations. Widely used across industries such as food, logistics, mining, and manufacturing, these systems can be easily integrated into automation infrastructures.

Thanks to their robust construction and flexible design features, shuttle conveyor systems enable the safe and balanced transportation of heavy loads. These conveyors can be custom-manufactured with various lengths, capacities, and speed options to meet specific requirements, offering businesses maximum performance and long service life. With low maintenance needs and high durability, shuttle conveyors help optimize costs and provide an ideal solution for ensuring efficiency and continuity in modern industrial facilities.

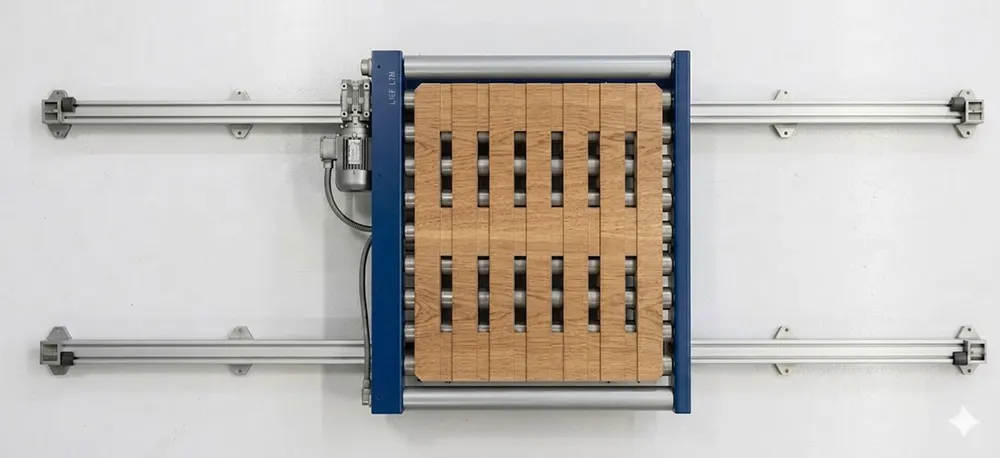

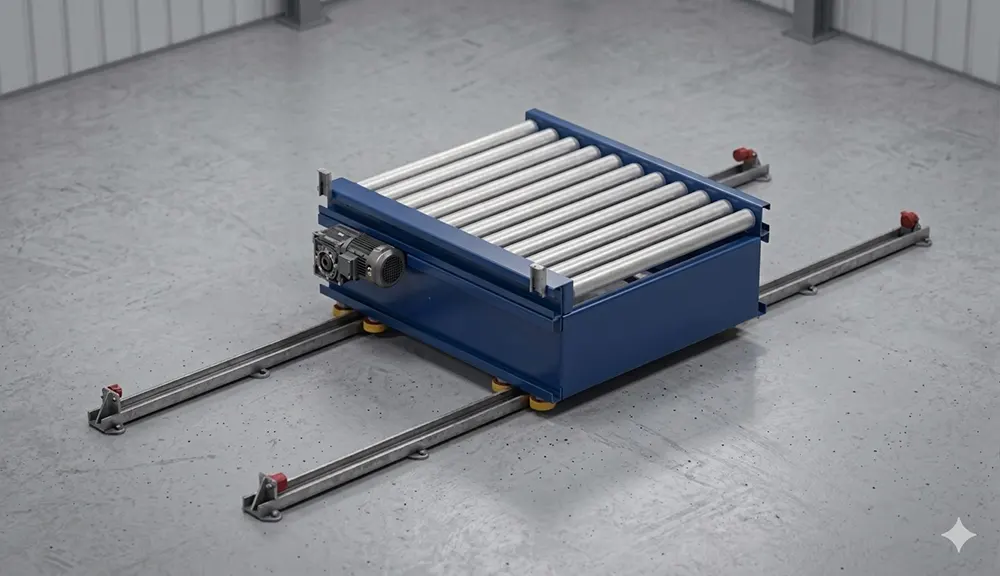

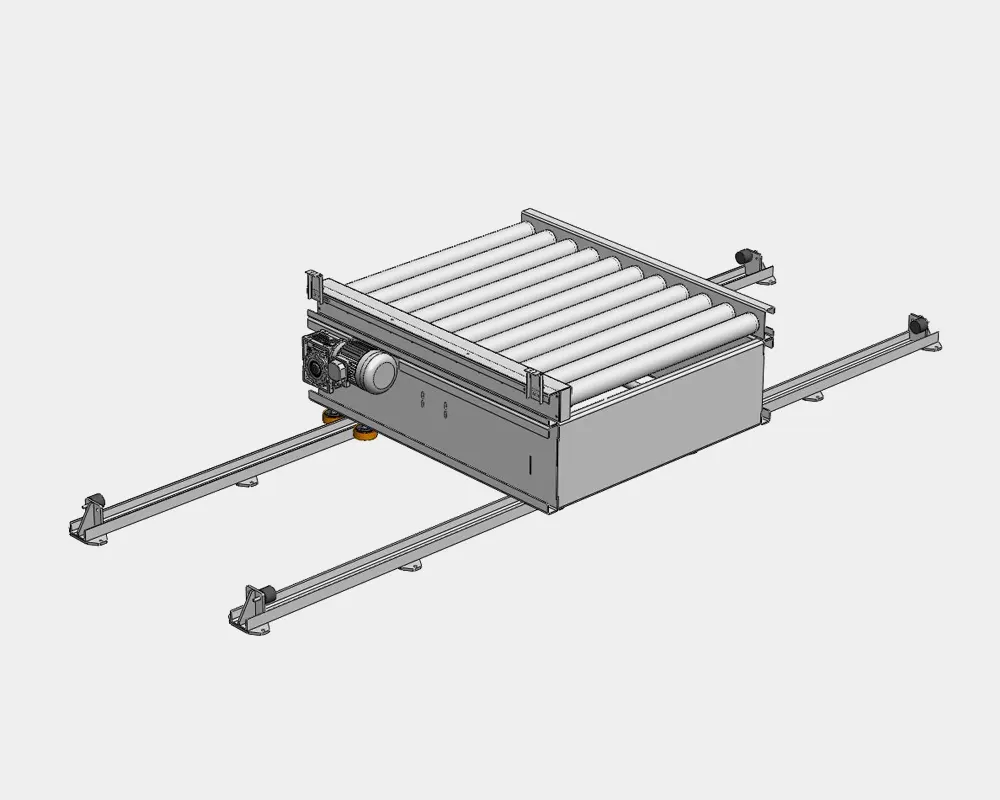

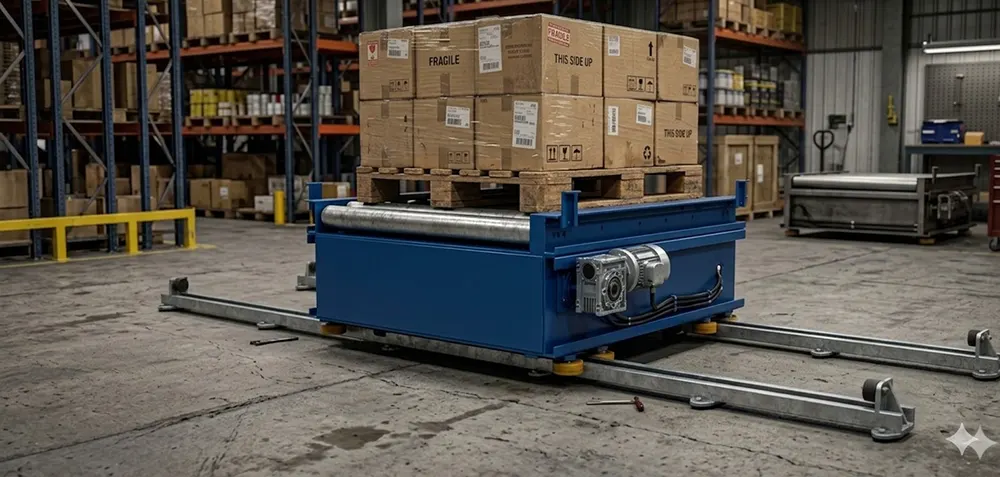

LEMA.32 - SHUTTLE CONVEYOR

Shuttle conveyor systems offer flexible and high-performance solutions for transporting products quickly and efficiently between different points in production lines.

Product Specifications for the Visual:

  • Max. product width: 1000 mm
  • Max. product weight: 2500 kg
  • Product height from the ground: 550 mm
  • Roller diameter: 89 mm
  • Distance between rollers: 135 mm
  • Roller thickness: 6 mm, sheet thickness (bottom frame): 6 mm, side plates: 4 mm
  • Conveyor dimensions: 1500 x 1300 x 550 (W x L x H) mm
  • Custom dimensions are also available.
